H8162 21.5-inch Electronic Doorplate Electronic Class Doorplate Meeting Doorplate

H8162 21.5-inch Electronic Doorplate Electronic Class Doorplate Meeting Doorplate

Product Introduction

The H8162 is a highly acclaimed, high-performance Android-based digital tablet device renowned in the industry. It is suitable for various scenarios such as electronic door signs, meeting room signs, and can also serve as a smart home control panel, providing users with a convenient smart control experience. The device features a 21.5-inch high-resolution color full-touch screen, delivering crisp and detailed visuals along with smooth touch operations. Its exterior is crafted from premium aluminum alloy, ensuring durability while maintaining a sleek and stylish appearance. Additionally, it is equipped with a high-performance chip supporting WiFi and PoE communication methods, guaranteeing efficient and stable operation for diverse applications and meeting users’ varied needs.

Features

1)Android system, designed with a high-end, minimalist, and fashionable aesthetic;

2)21.5-inch HD full-touch screen with a premium aluminum alloy design;

3)Electronic doorplate, meeting doorplate, and electronic class doorplate;

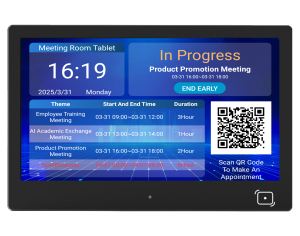

4)Meeting doorplate: Display room status, synchronize reservation information, and enable shared meeting room operations management; suitable for corporate and hotel meeting rooms, eliminating the hassle of updating traditional paper signs.

5)Electronic doorplate: Dynamic information display, smart access management, remote status control, and tracking the whereabouts of personnel at all levels within an organization; commonly used in office buildings, hospitals, and hotel rooms to enhance space management efficiency and security.

6)Electronic class doorplate: Class information display, access control verification, and support for payment systems. Primarily used in education and training sectors, supporting the development of smart campuses and training facilities.

7)Simple installation and maintenance, easy debugging, and automatic software upgrades.

Application Scenarios

Electronic doorplate, meeting doorplate, and electronic class doorplate.

Specifications



CPU

RK3566 Quad-core 1.8GHz Cortex-A55

RAM

2G

Storage

16G

OS

Android 11

Display

21.5-inch 1920×1080

Material

Aluminum frame + tempered glass + sheet metal

Input Interfaces

USB2.0 * 2, RJ45 * 1, DC12V*1

WiFi

802.11 b/g/n

Ethernet

10M/100M adaptive

Video Playback

Supports wmv, avi, flv, rm, rmvb, mpeg, ts, mp4, etc.

RTC

Supported

System Upgrade

Supports local USB upgrade

Camera

2MP HD camera

Microphone

Omnidirectional, pickup radius of 0.5m

Card Reader

IC/ID dual-frequency module

PoE Power Supply

Supported (optional)

Built-in Power Supply

100V~240V, 50-60Hz

Rated Power Consumption

30W

Standby Power

1W

Operating

Temperature

0°C to 50°C

Storage Temperature

-20°C to 60°C

Storage Humidity

5% to 90% RH

Operating Humidity

10% to 90% RH

Maximum Daily Usage

(hours/day)

18 hours

Internal Speakers

3W x 2

Mounting Method

Wall-mounted

Dimensions

510.7x338x28mm
