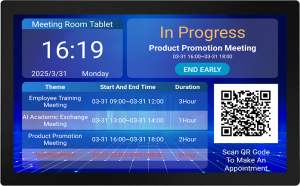

H8161 10.1-inch Electronic Doorplate Meeting Doorplate
Product Introduction
The H8161 is a highly acclaimed, high-performance digital tablet device based on the Android operating system. It is suitable for various scenarios such as electronic door signs, conference signs, and can also serve as a smart home control panel, providing users with a convenient smart control experience. Equipped with a 10.1-inch high-resolution color full touchscreen, it delivers clear and detailed visuals along with smooth touch operations. In terms of design, the H8161 features a premium aluminum alloy body, ensuring durability while maintaining a stylish and elegant appearance. Additionally, it is powered by a high-performance chip and supports communication methods like WiFi and PoE, guaranteeing efficient and stable operation for diverse applications to meet users’ varied needs.
Function Characteristics
1) Android system with a streamlined, modern, and minimalist design.
2) 10.1-inch HD full touchscreen with an oxidized aluminum alloy frame and high-temperature powder-coated rear shell for wear and corrosion resistance.
3) 2.5D curved tempered glass surface with Mohs 7-level explosion-proof protection.
4) Functions as an electronic door sign, conference sign, and smart home control panel.
5) Powered by the RK3566 Cortex-A55 quad-core CPU with a clock speed of up to 1.8GHz.
6) High-performance Mali-G52 GPU supporting mainstream audio/video formats and image decoding.
7) Equipped with a 2-megapixel HD camera for facial recognition.
8) Supports 10-point capacitive touch for an exceptional human-machine interaction experience.
9) Supports multiple network connections, including Ethernet and WiFi.
10)Features RGB light strips on both sides to display different colors based on meeting status.
Application Scenarios
Electronic door signs, meeting room signs, smart home central control panels.
Specification Parameters
|
CPU |
RK3566 Quad-core Cortex-A55, 1.8GHz High Performance |
|
GPU |
Mali-G52 |
|
RAM |
2GB |
|
Storage |
16GB |
|
OS |
Android 11 |
|
Display |
10.1-inch 800 * 1280 IPS |
|
Material |
Aluminum Alloy |
|
RJ45 |
Supports 100M/1000M Ethernet |
|
WiFi |
802.11b/g/n Protocol |
|
Input Interfaces |
USB 2.0 * 1; RJ45 * 1 |
|
Audio |
MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP |
|
Video |
H.264, VP8, RV, WMV, AVS, H.263, MPEG4 |
|
Image |
JPG, BMP, PNG |
|
System Upgrade |
Supports USB Upgrade |
|
Other Features |
Supports OTA Upgrade; Wiegand; RS485; GPIO Communication Protocols |
|
Touchscreen |
10-Point Projected Capacitive Touch |
|
Response Time |
≤3ms |
|
Touch Accuracy |
<2.5mm |
|
Precision |
99% |
|
Light Transmittance |
>85% |
|
Input Methods |
Finger, Capacitive Stylus |
|
Touch Lifespan |
10 Million Touches per Point |
|
Camera |
2MP HD Camera |
|
Lens |
CMOS 1/2.7 inch |
|
Max Resolution |
1920(H) x 1080(V) 30fps@1080P |
|
Dynamic Range |
110dB |
|
Aperture |
2.4mm |
|
Field of View |
78° |
|
Auto Exposure Control (AEC) |
Supported |
|
Auto White Balance (AWB) |
Supported |
|
Auto Gain Control (AGC) |
Supported |
|
Power Supply |
AC 110-240V, 50/60Hz |
|
Standby Power |
≤1W |
|
Operating Power |
≤10W |
|
Operating Temperature |
0°C – 50°C |
|
Operating Humidity |
20% – 80% RH |
|
Storage Temperature |
-20°C – 60°C |
|
Storage Humidity |
10% – 75% RH |
|
Mounting |
Wall-Mounted |
|
Dimensions |
249mm (L) x 171mm (W) x 13mm (H) |
