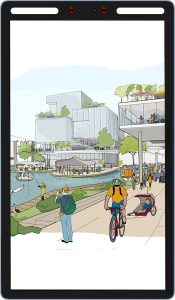

VF736 15.6 inch Video Intercom Face Recognition Terminal
Product Introduction
The VF736 video intercom access control terminal is a highly reliable and aesthetically pleasing integrated device featuring facial recognition/palmprint recognition with video intercom capabilities. It supports video intercom, facial recognition, and an optional innovative palmprint recognition technology for convenient user access while protecting privacy. Equipped with deep learning algorithms, it delivers fast recognition speed and higher accuracy, along with low power consumption and minimal heat generation. The device supports multiple verification methods including facial recognition, palmprint recognition,palmprint recognition, Bluetooth,and IC cards.It boasts a 15.6 inch full HD screen with a high screen to body ratio and supports wall-mounted or recessed installation.Primarily designed for residential communities,compuses,office buildings,schools,hospitals,and similar venues.
Functional Characteristics
1.A variety of door opening methods: face recognition, palm print recognition, mobile phone Bluetooth, mobile phone remote, card swiping, video intercom door opening, etc.;
2.Android multimedia playback: high performance, low-power consumption, Android system, support picture, video multimedia playback;
3.15.6 inch Full HD touch screen: 15.6 inch Full HD touch screen design;
4.Support wide dynamic back light camera: wide dynamic anti-back light recognition;
5.Wired and wireless communication: standard Ethernet, WiFi, optional G communication;
6.A variety of extended functions: QR code recognition, elevator control, external reading head, configuration as a one-key doorbell mode; Multi-person combination verification, witness identification;
7.Fine process manufacturing: high-end aluminum, tempered glass, IP waterproof design;
8.Compatible with turnstile columns, wall mounting, and flush mounting.
Platform Characteristic
1.Unified management of millions of IoT devices, comprehensive cloud audio and video solutions;
2.10,000-level terminal access, load balancing, and ultra-fast network;Integrated video intercom, access control, visitor, parking lot, charging, elevator control, monitoring of the unified platform;
3.Fully support property repair, payment, appointment and other functions, meet the needs of owners for the Internet of Everything, and support the upgrade of property Internet;
4.Real-time event recording, mass storage support, photo capture;Mature API development interface to provide docking and integration services;
5.Cloud ad management, breakpoint resumable upload and other strategies to ensure the safe delivery of advertising content.
Specification Parameters
|
System |
Android 11 |
|
Main chip |
Quad core A55 2.0G |
|
NPU |
1T |
|
Screen size |
15.6inch |
|
Touch |
Full screen capacitive touch |
|
Memory |
2G |
|
Storage |
16G |
|
Camera |
Anti-reverse light width dynamic 2 million double photography |
|
Visual intercom |
Support digital intercom and cloud intercom |
|
Dialing mode |
Optional input room number, directly click on the room list, support one-click intercom doorbell, support mobile phone number dialing * |
|
Agreement |
SIP |
|
Video |
H.264 |
|
Audio frequency |
PCMU |
|
Microphone |
Dual digital microphone |
|
Horn |
8Ω2W |
|
Face capacity |
20000 |
|
Card capacity |
100000 |
|
Radio frequency card type |
IC（ISO14443A/B)，Mifare/CPU |
|
Elevator control function |
Support |
|
Face recognition |
Optional |
|
QR code |
Optional |
|
Palmprint recognition |
Optional |
|
External access control reader |
Optional (instructions before placing order) |
|
Wiegand output |
Support |
|
Way of opening the door |
Face recognition door, mobile phone Bluetooth door, remote door, swipe card door, optional palmprint door |
|
Time schedule |
Support |
|
Normally open |
Support |
|
Combination verification |
Face + card / multi-person combination verification |
|
Bluetooth door opening distance |
Barrier-free within 10 meters |
|
Communication mode |
Standard Ethernet, WiFi, optional 4G |
|
Access control function |
1 door magnetic, 1 unlocking relay, 1 exit switch, 1 Weigen input interface, 485 expansion interface |
|
Event recording |
300000 |
|
Shell material |
Aluminum alloy |
|
Panel material |
Toughened glass |
|
Installation mode |
Wall hanging, gate posts |
|
Device size |
385*221*12(The thinnest)-27(Bracket included)mm |
