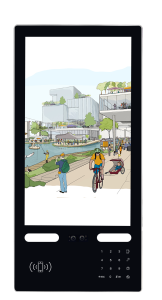

VF752 21.5 inch Face Recognition Visual Intercom Terminal
Product Introduction
VF752 21.5 inch face recognition visual intercom terminal is a cost-effective and reliable face recognition visual intercom product, which supports digital cloud intercom working mode and greatly reduces the overall cost and deep learning algorithm of intelligent visual intercom. Fast recognition speed, higher accuracy, ultra-low power consumption, no heating, support for face recognition, Bluetooth, IC card and other verification methods, 21.5 inch full HD screen, high screen proportion. Support wall-hanging, column installation, mainly used in communities, parks, campuses, kindergartens, hospitals and other places.
Functional Characteristics
1) There are many ways to open the door: face recognition door, mobile phone Bluetooth door, remote door, swipe card door, visual intercom door, etc.
2) Android multimedia playback: high performance, low power consumption, Android system, support for picture and video multimedia playback.
3) HD screen: 21.5 inch full HD screen design.
4) Wide dynamic backlight camera: wide dynamic backlight recognition.
5) Wired and wireless communication: standard Ethernet, WiFi, optional 4G communication.
6) Multiple extended functions: ID card identification, QR code recognition, health code + temperature measurement.
7) Fine craft manufacturing: high-end aluminum, toughened glass, IP54 waterproof.
8) Compatible with wall mount and post installation.
Platform Features and Functions
1) Unified management of millions of devices in the Internet of things and comprehensive cloud audio and video solutions.
2) 10,000-level terminal access, load balancing, high-speed network.
3) A unified platform for integrating visual intercom, face recognition access control, cloud door control, parking lot, elevator control and monitoring.
4) Fully support property warranty, payment and other functions to meet the transformation of property Internet +.
5) Real-time event recording, mass storage support, photo capture.
6) Mature API docking services to provide docking services to help smart communities.
7) Cloud advertising management, breakpoint continuation and other strategies to ensure the safe distribution of advertising content.
Specification Parameters
|
System |
Android 11 |
|
Main chip |
Quad core A55 2.0G |
|
NPU |
1T |
|
Screen size |
21.5 inch, 1080 inch 1920 |
|
Press the key |
Touch button, 16 key |
|
Memory |
2G |
|
Storage |
16G |
|
Camera |
Anti-reverse light width dynamic 2 million double photography |
|
Visual intercom |
Support digital intercom and cloud intercom |
|
Dialing mode |
Optional input room number, directly click on the room list, support one-click intercom doorbell, support mobile phone number dialing * |
|
Agreement |
SIP |
|
Video |
H.264 |
|
Audio frequency |
PCMU |
|
Microphone |
Single microphone |
|
Horn |
8Ω2W |
|
Face capacity |
20,000 |
|
Card capacity |
100 Thousand |
|
Radio frequency card type |
IC（ISO14443A/B)，Mifare/CPU |
|
Elevator control function |
Support |
|
Witness identification |
Optional |
|
Two-dimensional code |
Optional |
|
Palmprint recognition |
Optional |
|
External access control reader |
Optional(instructions before placing order) |
|
Wiegand output |
Support |
|
Way of opening the door |
Face recognition door, mobile phone Bluetooth door, remote door, swipe card door, optional palmprint door |
|
Time schedule |
Support |
|
Normally open |
Support |
|
Combination verification |
Face + card / multi-person combination verification |
|
Bluetooth door opening distance |
Barrier-free within 10 meters |
|
Communication mode |
Standard Ethernet, WIFI, optional 4G |
|
Access control function |
1 door sensor, 1 unlocking relay, 1 exit switch, 1 Weigen input interface, 485 expansion interface |
|
Event recording |
300000 |
|
Shell material |
Aluminum alloy |
|
Panel material |
Toughened glass |
|
Installation mode |
Wall hanging, post |
|
Device size |
670*321*31.9mm |

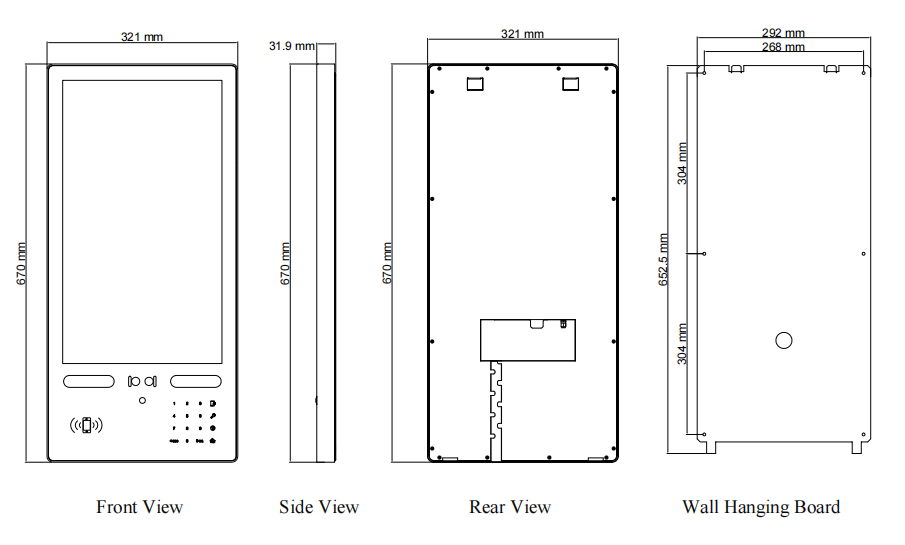

Product Size (mm)
