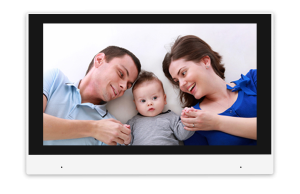

H802 All-digital Visual Intercom Indoor Unit
Product Description
The industry’s leading digital visual intercom indoor unit based on embedded Linux system uses a 7-inch color full touch screen to support local intercom and cloud visual intercom. Cloud intercom function can be achieved through WIFI or Ethernet, without the need for separate networking and wiring with the doorway machine.
Features
1) Ultra-narrow frame design, high-grade atmosphere, simple and fashionable.
2) 7-inch HD full touch screen, easy to operate.
3) Clear sound quality.
4) Visual intercom, open the door with one button, easy to use.
5) Support emergency one-click alarm, call the management center, and have a two-way
dialogue with the management center.
6) Support real-time viewing of surveillance video.
7) Simple installation and maintenance, convenient debugging and automatic software upgrade.
Cloud video intercom
Support APP access, and cooperate with APP to realize cloud intercom function; when someone presses the doorbell, the indoor unit and mobile phone ring at the same time, and video and voice calls can be made.
Specifications
Main chip | Main frequency 1.2G |
RAM | 128MB |
Storage | 128MB |
Screen size | 7 inch |
Interactive mode | Full screen touch |
Networking mode | Standard Ethernet, optional WiFi |
Defense zone | 8-way |
Audio and video communication protocol | SIP |
Microphone | 1 |
Horn | 1 |
Smart home linkage | Optional as zigbee, Bluetooth gateway |
Overall size | 176*117*16mm |
Installation method | Wall-mounted installation, standard 86 boxes with holes |
Power supply | Support 12V DC/24V non-standard POE input/optional support POE |
