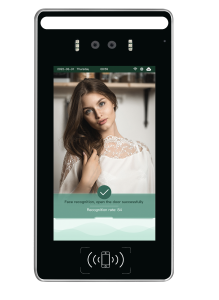

F600 Face recognition terminal
Product Introduction
Face recognition terminal is a high-performance, high-reliability face recognition access control product,using its own NPU high-performance CPU, deep learning algorithm, faster recognition speed, higher accuracy, support for face recognition, Bluetooth, IC card and other verification methods, 7-inch full HD screen, high screen ratio, compatible support wall, column installation, mainly used in communities, parks, campuses, kindergartens, hospitals and other places.
Features
1) 7-inch HD screen design.
2) Integrate the functions of face recognition, Bluetooth and access control by card.
3) ARM high-speed CPU, with NPU, embedded Linux system.
4) Ethernet as standard, optional 4G/WiFi.
5) Multiple unlocking methods: mobile Bluetooth / mobile remote / face recognition / swiping card and other unlocking methods.
6) 200W HDR binocular live, anti-counterfeiting and anti-counterfeiting.
7) Remote cloud management to minimize on-site management.
8) Support security capture: video information collection of entry and exit personnel, early warning.
9) Seiko, equipment dustproof grade up to IP54.
Platform Features
1) Support property payment, access control intercom, parking lot, charging pile, elevator control, visitors and operation management functions.
2) Unified management of millions of devices in the Internet of things and comprehensive cloud audio and video solutions.
3) A unified platform that supports visual intercom, face recognition, cloud gate ban, parking lot, elevator control and monitoring.
4) Fully support property repair, payment and other functions to meet the transformation of property Internet +.
5) Mature API docking services to provide docking services to help the smart community park.
6) Reliable computing platform.
Specifications
System | Linux |
Main chip | CV1835 |
NPU | 1T |
Screen | 7 inch，600*1024 |
Memory | 512MB |
Storage | 8GB |
Agreement | SIP* |
Video | H.264 |
Audio frequency | PCMU |
Microphone | Single microphone |
Horn | 8Ω2W |
Face capacity | 20,000 |
Card capacity | 100 Thousand |
Event recording | 300000 |
Radio frequency card type | IC（ISO14443A/B)，Mifare/CPU |
Elevator control function | Support |
Witness identification | Optional |
QR Code | Optional |
External access control reader | Optional (instructions before placing order) |
Wiegand output | Support |
Way of opening the door | Face recognition, mobile phone Bluetooth, remote, swipe card door |
Access control period | Support |
Normally open | Support |
Bluetooth door opening distance | Barrier-free within 10 meters |
Communication mode | Standard Ethernet, optional 4G and WIFI |
Access control function | 1door magnetic, 1unlocking relay, 1exit switch, 1Weigen input interface, 485 expansion interface |
Shell material | Aluminum alloy + plastic |
Panel material | Toughened glass |
Installation mode | Wall hanging, gate posts |
Device size | 245*123.3*27.5mm |

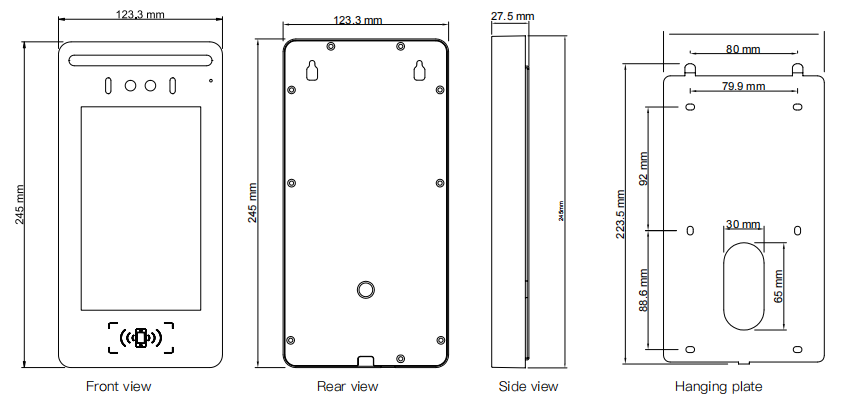

Product Size
