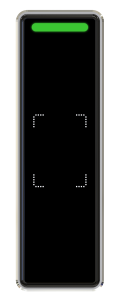

M230 Metal Access Control
Product Introduction
The metal all-in-one access control machine is an entrance access control device that integrates the functions of card swiping, Bluetooth,password (optional) intelligent sensing, etc.; it can be used in community, park and office access control, and can be verified by employees, owners and visitors. through the Internet, the Internet of things advanced technology to achieve convenient access experience; support networking, offline use. Support all-in-one machine and reader mode, open the door by swiping card, Bluetooth, remote, password (optional) and so on.
Functional Characteristics
1) Integrated access control functions of Bluetooth, swiping card and password (optional).
2) WiFi networking, supporting networking and offline use.
3) Support the function of access control period.
4) Solid state relay design, antimagnetic door, safe and reliable.
5) Device waterproof grade IP65.
6) A variety of unlocking methods: mobile Bluetooth / mobile remote / swiping card / password (optional) unlocking and other ways.
7) 44mm ultra-narrow design, metal + 2.5D toughened glass high-end material.
8) Mobile APP mobile terminal management.
9) Seiko, equipment waterproof grade IP65.
Platform Features and Functions
1) Support property payment, access control intercom, parking lot, charging pile, ladder control, visitors and operation managementfunctions.
2) Unified management of millions of devices in the Internet of things and comprehensive cloud audio and video solutions.
3) A unified platform that supports visual intercom, face recognition, cloud gate ban, parking lot, ladder control and monitoring.
4) Fully support property repair, payment and other functions to meet the transformation of property Internet +.
5) Mature API docking services to provide docking services to help the smart community park.
6) Reliable computing platform.
Specification Parameters
Main chip | 160m dominant frequency |
Card capacity | 2000 |
Door opening verification mode | Bluetooth, Card, remote, password (optional) |
Radio frequency card type | Standard IC (ISO144443A/B) and optional support for ID |
Intelligent induction | Wave close to sense (optional) |
Access control period | 8 groups |
Relay type | Antimagnetic solid state relay |
Networking mode | WiFi |
Bluetooth door opening distance | Barrier-free within 10 meters |
Indicator light | Red and green indicator lights |
Access control input and output | All the way out the door switch, one door magnetic input and one door output |
Alarm input | 1-way alarm input |
Weigen interface | 1-way Weigen output interface |
Shell material | Metal, tempered glass |
Waterproof grade | IP65 outdoor waterproofing |
Operating temperature | -30℃~80℃ |
Working humidity | 10-90% |
Power specification | 12-24V wide voltage |
Equipment size | 140*44*24.6mm |
